Descripción

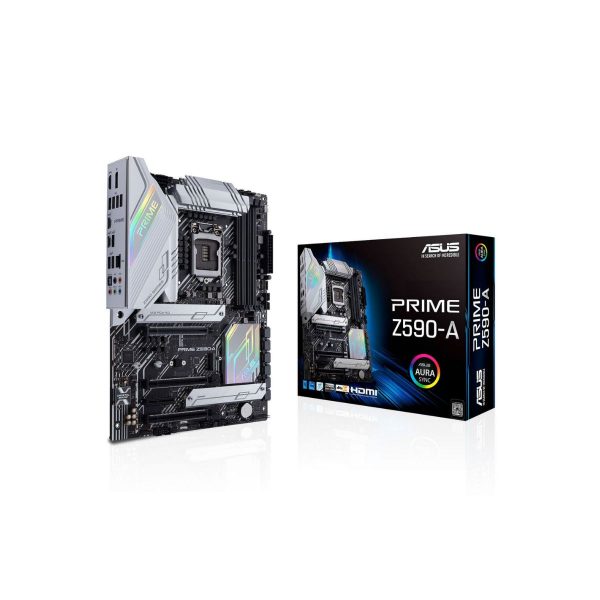

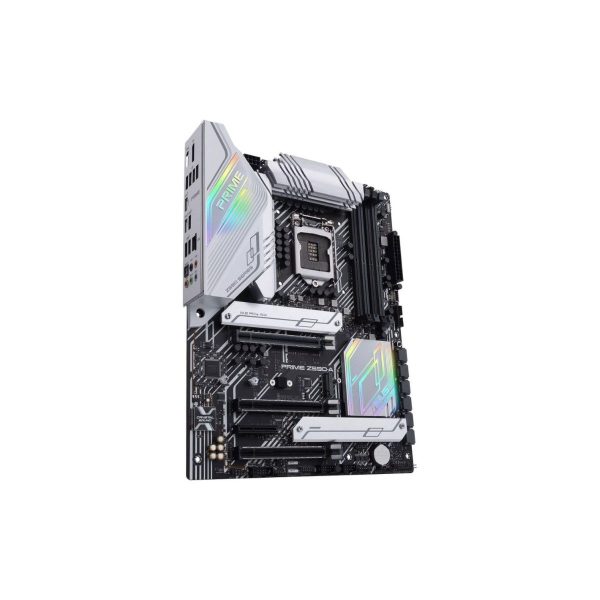

Tarjeta madre Intel® Z590.
– Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de 10a y 11a generación.
– Solución de potencia mejorada: 14 + 2 fases de poder DrMOS, PCB de seis capas, puertos ProCool, chokes de aleación y condensadores duraderos para una entrega de potencia estable.
– AI Overclocking: Optimiza el rendimiento de la CPU en función del disipador logrando resultados que se acercan mucho al ajuste manual realizado por expertos.
– AI Cooling: Administra y controla todos los ventiladores de la tarjeta madre, optimizando automáticamente la configuración según la carga y la temperatura actual del sistema.
– Cancelación de ruido IA de dos vías: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
– Refrigeración completa: Gran disipador de VRM, disipador de M.2, puertos de ventilador híbridos y Fan Xpert 4.
– Conectividad de próxima generación: PCIe® 4.0, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, USB 3.2 Gen 1 Type-C® en panel frontal, soporte Thunderbolt ™ 4.
Marca:Asus
Part Number: 90MB16D0-M0EAY0
CPU:
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: Z590
Memoria:
Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Gráficos:
1 x DisplayPort 1.4**
1 x HDMI™ 2.0***
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
*** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Audio:
S1220A
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*”
Audio Features:
– Power pre-regulator reduces power input noise to ensure consistent performance
– Rear optical S/PDIF out port
– Premium Japanese audio capacitors
– Audio Shielding
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Ranuras de Expansión:
3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4)
Intel® 11th & 10th Gen Processors
3 x PCIe 4.0/3.0 x16 slots*
– Intel® 11th Core™ processors support PCIe 4.0 x16
– Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
Conectores:
– 1 x Thunderbolt 4 header
Fan and Cooling related
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 3 x 4-pin Chassis Fan headers
– 1 x 4-pin VRM_HS Fan header
– 1 x W_PUMP+ header
Power related
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related
– 3 x M.2 slots (Key M)
– 6 x SATA 6Gb/s ports
USB
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
– 3 x AURA Addressable Gen 2 headers
– 1 x AURA RGB headers
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x CPU Over Voltage jumper
– 1 x Power button
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thermal Sensor header
– 1 x Thunderbolt™ header
Panel trasero E/S:
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
– 4 x USB 2.0 ports (4 x Type-A)
– 1 x DisplayPort
– 1 x HDMI™ port
– 1 x Intel® I225-V 2.5Gb Ethernet port
– 5 x Audio jacks
– 1 x Optical S/PDIF out port
Formato:ATX
Socket:1200
Almacenamiento:
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s ports
*Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
**** M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.
RAID:Sin informacion
USB:
Rear USB:Total 9 ports
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 7 ports
– 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
